FTTH – FIBRE TO HOME

ARIEL CABLE FIG-8 UT

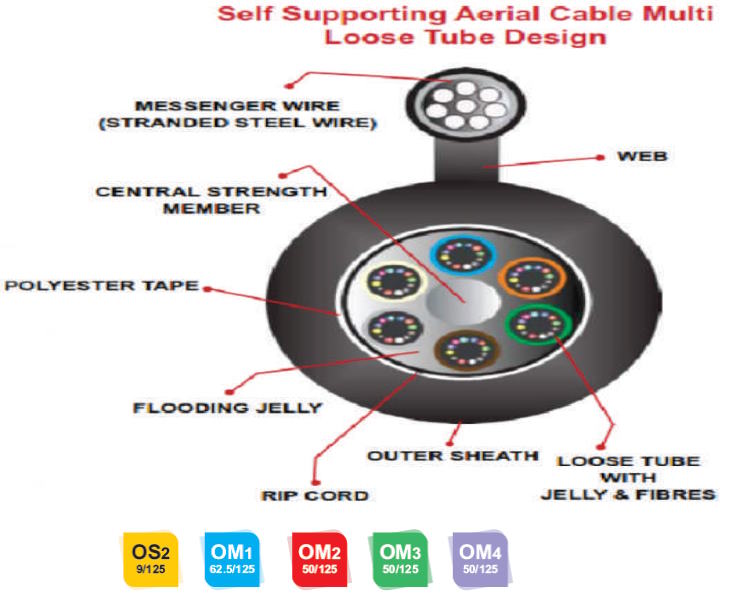

This cable is as tranded loose tube cable with optical fibres placed insiderobust buffer tubesstranded around a fibre rein forced plastic(FRP)central strength member.
In addition to optical fibres, the buffer tubes contain water blocking gel, and the cable core issur rounded with water swellable tape to prevent wateringress in the intersticeso f cable core.

Application

Lashed aerial installation with rigorous load conditions Including heavy wind & ice Suitable for span length of 100 mtrs.

Cable Construction

Up to 144 low water peak single mode fibres in compliance with ITU-T-G.652DNon metallic and anti buckling element FRProd used as Central Strength Member.
Loose buffer tubes jelly filled Loose buffer tubes S-Z Stranded Cable core filled with jelly / WSYarn S-Z core wrapped with polyester tape / WSTape High tensile, stranded steel wire used as messenger UV stabilized outer sheath, black.

Fibre Count	Diameter (mm)(Nominal)	Weight (kg/km)	Tenslle Strength Installation	Tenselle Strength Installed
Upto 48	11.0	135	5000	2500
96	12.5	180	5000	2500
144	15.5	250	5000	2500

Variants*
* Cable can be supplied with single mode (ITU-T-G652, G655, and G657) & Multimode (50μm & 62.5μm)
* Outer Jacket can be of PVC, LSZH, and HDPE
* Cable construction can be jelly filled or dry core
